CALPEDA NM1S05A16S

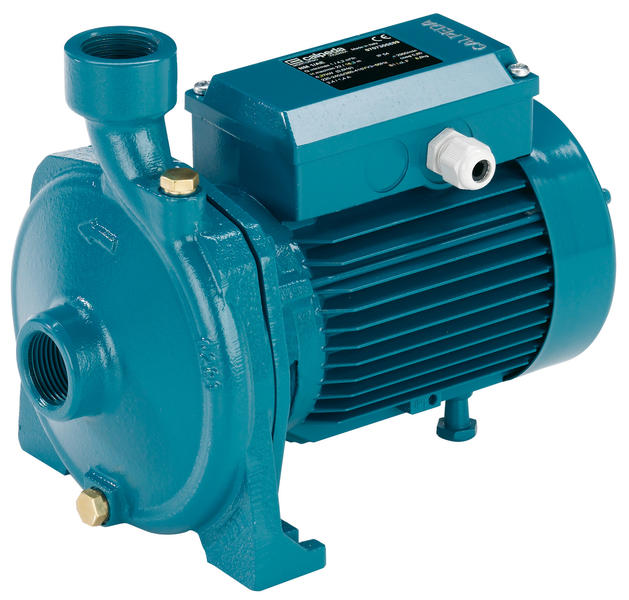

Calpeda 1/2 HP 115/1/60 Cast Iron Centrifugal Pump NM1S 05A16S. Cast iron pump body, brass impeller, stainless steel motor shaft, carbon ceramic mechanical seal, Threaded Ports NPT connections, 1/2 HP, 3450 RPM, 115 volts, 1 phase, 60 Hz, 8.4 amps. Replacement for Pedrollo CP05 A16S Pump.

Construction: Pump Body: Cast iron, with threaded ports, electric motor with extended shaft directly connected to the pump, single-impeller. Mechanical Seal: carbon ceramic NBR. Connections: threaded ports NPT. Motor: 1/2 HP, 3450 RPM, single phase, 115 volts, 60 Hz, built-in overload protection. Maximum working pressure: 145 PSI Liquid temperature: from 14 F to 194 F. Weight: 20.5 lbs
